Pico HD2 Meter

Pico HD2 Meter is the mobile reading device for Pico Soil Moisture Probes. Easy to use and mobile solution for soil moisture measurement. Control the quality of your soil on site with accurate and clear onsite results displayed immediately. A reliable and practical determination of Soil Moisture, Temperature and Conductivity.

Contact Van Walt

Advantages

  • Mobile soil moisture readout device
  • Multi-line LCD display shows all your information at a glance
  • Extremely robust and stable
  • Powerful battery for hundreds of measurements
  • Easy use
  • Convenient one hand, four button operation
  • High reliability even under challenging environmental conditions
  • Based on radar technology
  • Connects to all Pico probes
  • Measurement via TRIME® radar technology with an electromagnetic TDR impulse with 1 GHz to measure the water content precisely to material saturation
  • Display of measuring value within two seconds
  • Robust and watertight structure
  • Probe can be connected to a PC for data collection, change of operation mode or calibration
  • Delivery with a resistant hard shell case for trouble-free transport

Pico HD2 Meter

Call Van Walt
+44 (0) 1428 661 660 Call Van Walt
+64 (0)3443 5326 Call Van Walt
+27 21 518 1347

Pico HD2 Meter Equipment Options:

,

Specifications

Technical Specifications
Height
36mm
Width
64mm
Length
150mm
Weight
437g

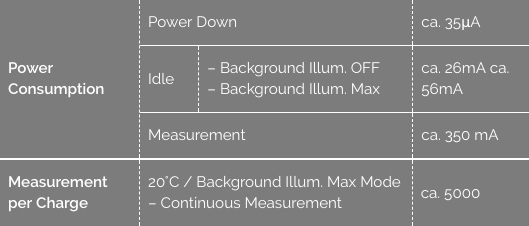

Power Consumption
Power Down
ca. 35μA
Idle
– Background Illum. OFF
– Background Illum. Max
ca. 26mA
ca. 56mA
Measurement
ca. 350 mA
Measurement per Charge
20°C / Background Illum. Max Mode – Continuous Measurement
ca. 5000
Storage Temperature
-30°C up to 80°C
Operating Temperature
-20°C up to 70°C
Charging Temperature
10°C up to 30°C
Charging Voltage
Nom. 12V, Max. 15V, Min. 12V
Charging Current
ca. 1A
Charging Time
At exhaustively discharged accumulator. 2h
Accumulator
Ni-MH (4 x 1.2V) (AA), 2000mAh, >1500 Measurements
Physical BUS
RS485
Bus-Protocol
IMP-BUS-Protocol II
IMP-Bus Port Settings
8 Data Bits, 2 Stop Bits, Odd Parity

Accessories

Spare rods
85 mm preparation probe
Tube extension
Preparation set
Pico 64 Soil Moisture Probe
Pico 32 Soil Moisture Probe
Pico Profile
