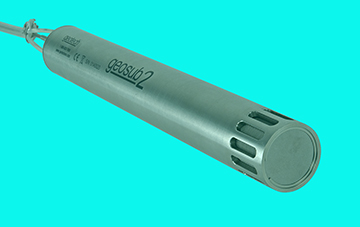

Geosub 2 Pump & Controller System

The Geosub 2 Pump & Controller system is a versatile, stainless steel, pumping solution. A DC pump for low flow sampling and high flow well purging. Robust and tested design with stainless steel components for sampling in the harshest well conditions. The Geosub 2 operates with the Geosub 2 Controller and a portable reel system or as a dedicated well system to 60 m depth.

Requires tubing:

10 x 12 mm Polyethylene tubing (12.20.13)

Please talk to us if your application is deeper than 60m.

Categories: , Tag:

Weekly Rental Prices

First 4 weeks 5th & 6th weeks 7th week +
£495 £330 £247.5

Please Log In or Register to create an order.

You'll return here when you're done.

Login / Register

Product Details

Description

  • Unique pump system with no comparable competitors for groundwater monitoring
  • System CE Certification
  • A high-quality, rugged, reliable & versatile pump
  • One year Manufacturer’s Warranty
  • Rugged construction and easy to connect cables for quick & simple setup and portability
  • Low flow or high flow options
  • Suitable for PFAS sampling
  • Pump to 60 m head of water or can go deeper with drop tube assembly
  • Site safe variable DC output power from an AC power source
  • Built-in sensing for accurate and precise control over the pump during sampling events
  • Easy-to-use programmable user interface with bright display for precise control of flow rates
  • Site specific settings and conditions can be easily stored and recalled for more efficient repeatable sampling events
  • Up to 18 hours continuous run time
  • Sample to 60 m depth
  • Low flow sampling or purging of wells
  • Low flow sampling rates to 10 mL/min
  • High flow purging (+/- 7.5 l/min at 30 metres head)
  • User programmable dry-run protection feature
  • Easy to decontaminate
  • Optional Drop Tube Assembly for greater depth

Pump

  • Wetted Parts: 316 Stainless steel, PEEK, HDPE
  • Electric
  • Full Load Rating: 2/3 HP
  • Maximum Amp Draw: 10 amps DC
  • Overload: Incorporated into Geosub 2 Controller
  • Discharge Port Connection: 1/4″ female NPT (includes 3/8″ barb)
  • Dimensions & Weight (Pump & Motor):
  • Dimensions of Pump: 34cm L x 4.5cm OD (13.2″ L x 1.75″ OD )
  • Net Weight of Pump w/o Lead: 1.8 kg (4 lbs.)

Cable

  • Material: Two 12 gauge conductors with HDPE jacket, and integrated safety cable
  • Weight with Geo Reel & Safety Cable
  • 100′ (30.5 m) of 12 AWG & Safety Cable: 8.3 kg (18.3 lbs.)
  • 150′ (45 m) of 12 AWG & Safety Cable: 9.8 kg (21.6 lbs)
  • 200′ (61 m) of 12 AWG & Safety Cable: 11.3 kg (24.9 lbs.)

Controller

  • Input Power Range:
    100-130 Volts AC 50/60 HZ 310 Watts 4.2 amps nominal full load 115 Volts AC
    200-250 Volts AC 50/60 HZ 310 Watts 2.1 amps nominal full load 230 Volts AC
  • Output Power: Variable 0-46V DC @ <300 Watts
  • Output Power @Maximum Voltage: 10 amps maximum
  • Operating Temperature: -29°C to 38°C (-20°F to 100°F) ambient air temp.
  • Humidity: Up to 90% humidity
  • Weight of Unit: 7.46 kg (16.45 lbs.)
  • Size of Unit: 41cm L x 33cm W x 18cm H (16″ L x 13″ W x 7″ H)
  • Input Protection: 5A CB
  • Certification: CE
