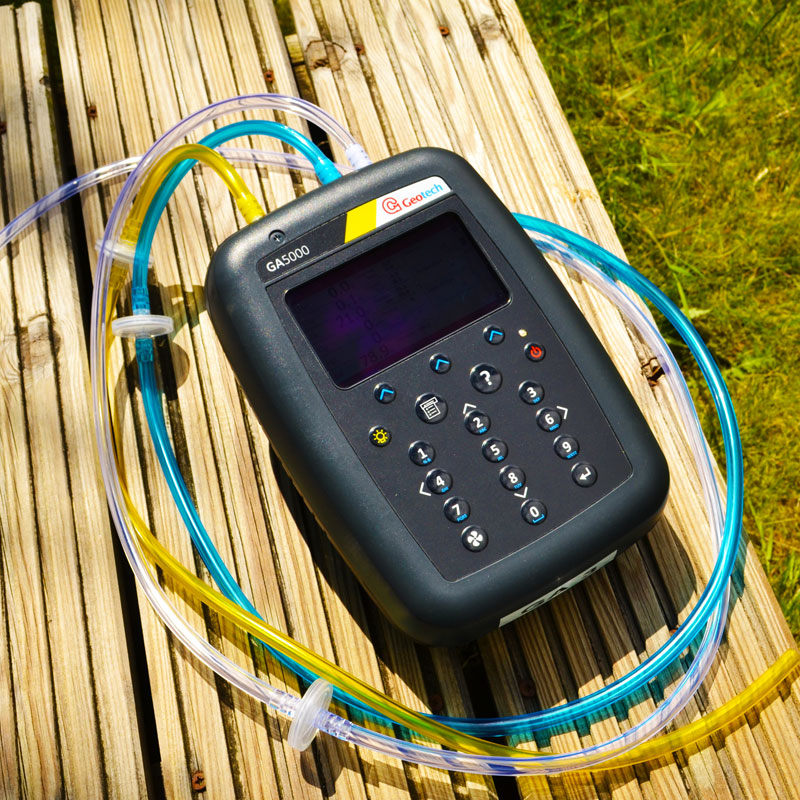

GA5000 Portable Landfill Gas Analyser

A landfill and contaminated land portable gas analyser for measurements of CH4, CO2, O2, H2S and CO. Internal pump and flow pod. Capable of gas analysis, pressure test and flow test. Easy to use, the GA5000 is reliable and accurate for monitoring:

  • Landfill gas
  • Waste to energy sites
  • Site investigation.

REQUIRED: Sampling Tube GA5S, cost £26.73

Categories: , Tag:

Weekly Rental Prices

3 Day Express First 4 weeks 5th & 6th weeks 7th week +
£254.45 £332.24 £221.22 £166.12

Please Log In or Register to create an order.

You'll return here when you're done.

Login / Register

Product Details

Description

A landfill and contaminated land portable gas analyser for measurements of CH4, CO2, O2, H2S and CO. Internal pump and flow pod. Capable of gas analysis, pressure test and flow test. Easy to use, the GA5000 is reliable and accurate for monitoring:

  • Landfill gas
  • Waste to energy sites
  • Site investigation.

Benefits:

  • Certified: ATEX, IECEx, CSA, MCERTS and UKAS calibration (ISO17025)
  • Measures percentage CH4, CO2, and O2
  • Easy transfer of data
  • Measures barometric pressure and relative pressure
  • Easy to use
  • Peak and previous readings shown
  • Choice of user settings and simple gas reading function
  • Simultaneous display of all gases
  • CH4 and CO2 accuracy ± 0.5% after calibration
  • Memory: 2,000 IDs and 4,000 readings (* with GAM software)
  • Data logging and profiling function
  • Standardises monitoring routines
  • Fully backed by the Van Walt Technical team.
  • Size: L 220mm, W 155mm, D 60mm
  • Weight: 1.6 kilograms
  • Case Material: ABS/ polypropylene with rubber over-moulding
  • Keys: Alpha-numeric keypad with "tactile" membrane
  • Display: Ultra-clear high resolution 4.3" full colour TFT
  • Connections:

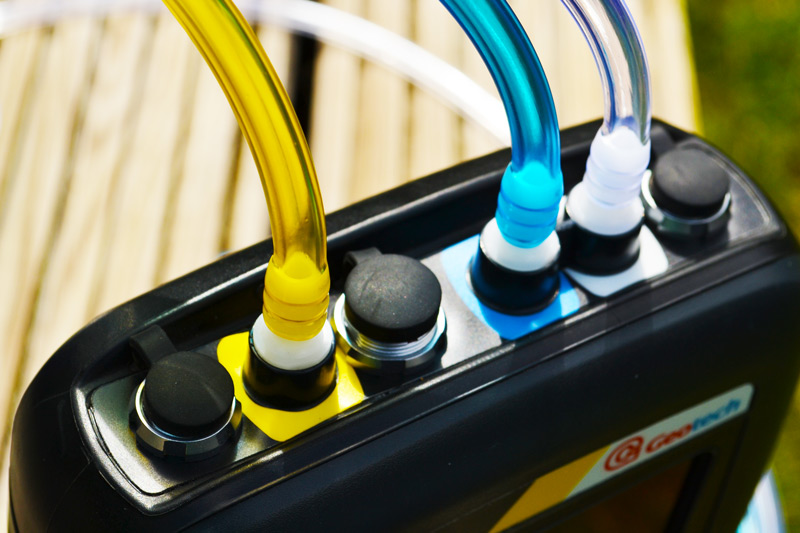

    • Colour coded gas inlet, outlet and pressure ports.
    • Waterproof USB port, anemometer and charger/ temperature probe connections
  • Gas sample filters: External user changeable 2.0µm ptfe water traps

Have a question for Van Walt?

Please complete the form below; a member of our team will contact you shortly

Oops! Something went very wrong. Please refresh and try again...

You May Also Need...

  • LEL Personal Protection Monitor – Calibrated to Methane

    Part of the 'Safe on Site' package, a robust and accurate portable gas detector with audible and visual alarms which sound in the event of exposure to flammable gases, oxygen and a wide range of toxic gases onsite.
    From £104.19 Login for loyalty discount
  • LEL Personal Protection Monitor – Calibrated to Pentane

    Part of the 'Safe on Site' package, a robust and accurate portable gas detector with audible and visual alarms which sound in the event of exposure to flammable gases, oxygen and a wide range of toxic gases onsite.
    From £104.19 Login for loyalty discount

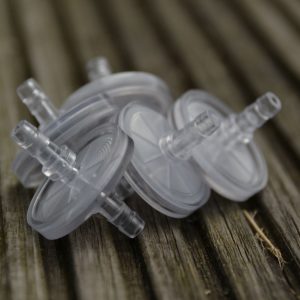

  • GA5000 Filter (GA4.9)
