Length w/batteries - w/pressure 16.40” (41.6 cm)
- w/o pressure 12.59” (32.0 cm)
Length w/o batteries - w/pressure 14.90” (37.8 cm)
- w/o pressure 11.09” (28.2 cm)

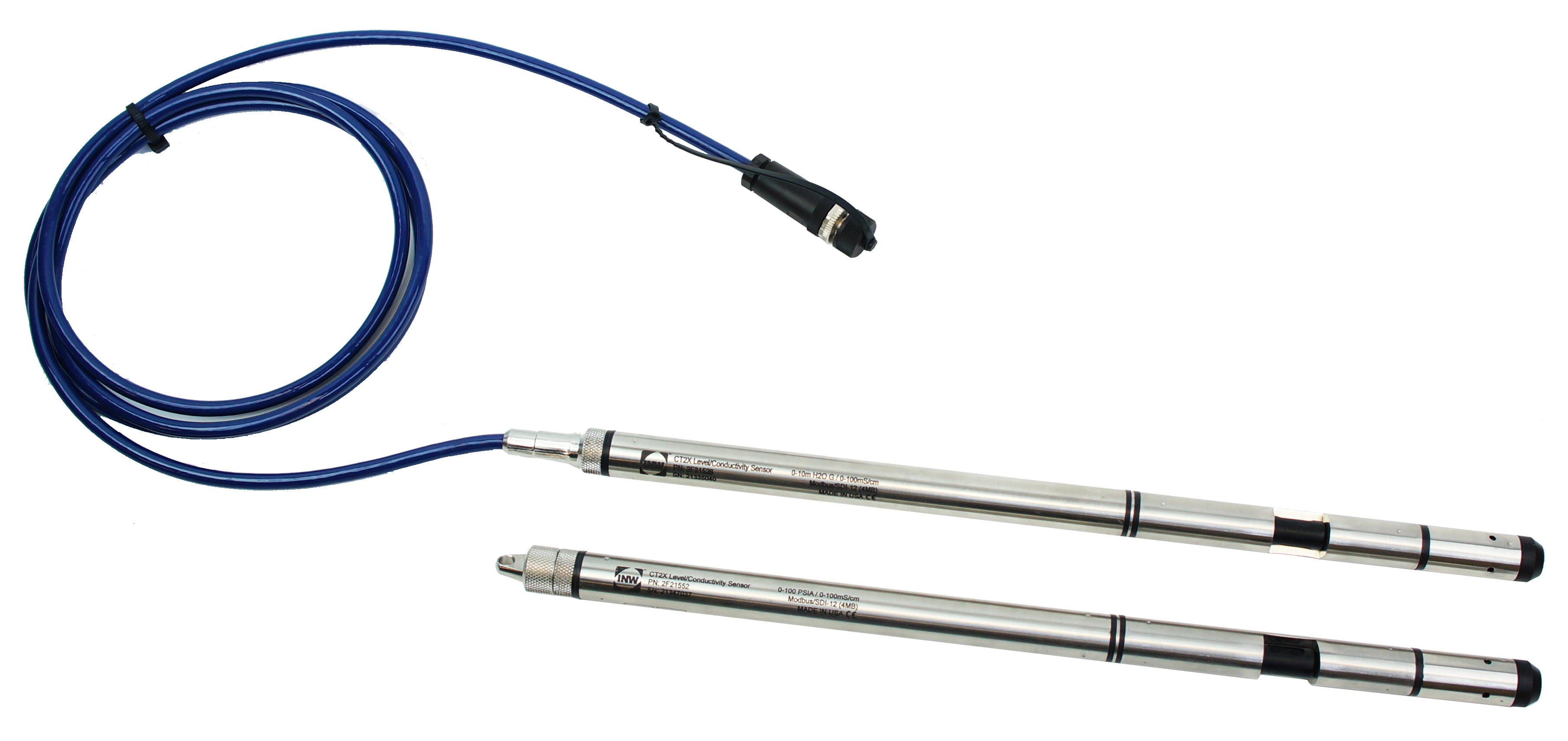

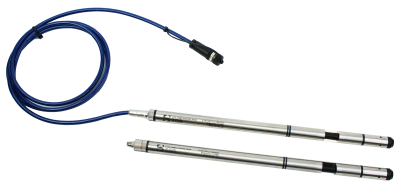

- Cableless 0.25” (0.6 cm) shorter
Diameter - 0.75” (1.9 cm)
Weight - 1.0 lb. (0.5 kg)
Body Material - Acetal & 316 stainless steel or titanium
Wire Seal Material - Fluoropolymer and PTFE
Submersible Cable - Polyurethane, polyethylene or FEP
Cable weight - 4lbs./100ft (1.8kg/30 m)
Protection Rating - IP68, NEMA 6P
Desiccant - 1-3 mm indicating silica gel (high or standard capacity)
Terminating Connector
- Available
Communication - RS485 Modbus® RTU
- SDI-12 (ver.1.3)
Recommended Operating Temp Range3 -
-5°C to 40°C
Storage Temp. Range1 -
-40°C to 80°C
Memory - 4MB – 349,000 records
Log Types - Variable, user-defined, logarithmic, profiled
Programmable Baud Rate -
9600, 19200, 38400
Logging Rate - 4x/sec maximum
Software - Complimentary Aqua4Plus or Aqua4Push
Networking - 32 available addresses per junction w/batching capabilities (up to 255)
File Formats - .xls / .csv / .a4d
POWER
Internal Battery - 2×1.5V AA Alkaline2
Auxiliary Power - 12 VDC – Nominal
- 6-15VDC – Range
Exp. Alkaline Battery Life
- 18 months at 15m polling interval7
Element Type - 30K ohm thermistor
Element Material - Epoxy bead/external housing
Units - Celsius, Fahrenheit, Kelvin
Transducer Type - Silicon strain gauge
Transducer Material -
316 stainless steel or titanium
Units - PSI, FtH2O, inH2O, cmH2O, mmH2O, mH2O, inHg, cmHg, mmHg, Bars, mBars, kPa
Static Accuracy - ± 0.05% FSO (typical)
± 0.1% FSO (maximum)
(B.F.S.L. 20°C)
Resolution - 0.0034% FS (typical)
Maximum Operating -
1.1 x FS
Burst Pressure4 - 3.0 x FS
Compensated Range -
0°C to 40°C
Probe Material - Epoxy/Graphite
Static Accuracy - ± 0.05% of measured value
Ranges - 0-100,000 or 0-200,000 or 0-300,000 μS/cm
Conductivity6 - 4.9-49,000 or 4.9-98,000 or 4.9-147,000 mg/L
TDS - 2-42 PSU
Salinity
Units - μS/cm, mS/cm, mg/L, PSU
Resolution - 0.1 μS/cm / 0.001 mS/cm / 0.1 mg/L (TDS) / 0.001 PSU
Thermal Compensation -
None, linear or nLFn
1. Storage without batteries
2. Lithium available upon request
3. Requires freeze protection kit if using pressure option in water below freezing
4. Burst reduced at PSI>300
5. Higher pressure ratings available upon request
6. Accuracy reduced at levels < 10μS/cm
7. May vary due to environmental factors
8. ±0.25% accuracy FSO (max) at this range
9. Depth range for absolute sensors has 14.7 PSI subtracted to give actual depth allowed.
