LevelSCOUT 2X
The LevelSCOUT 2X is accurate, reliable and lasts a lifetime. It is a high-quality Water Level Logger for groundwater monitoring which has many benefits over other absolute dataloggers, including being the only level logger that is environmentally sustainable. To be used with the BaroScout 2X.
Contact Van Walt Aqua4Plus Software download Aqua4Plus Driver downloadAdvantages
- Accurate, reliable and lasts a lifetime
- Backed up with a market leading 3-year warranty
- Easy to use, best-in-class improved and upgraded software which updates the logger every time it is connected to the internet
- Improved logger design with double ‘O’ rings for more resilience
- An environmental monitoring logger that is truly environmentally sustainable
- Expanded non-volatile memory storing 100,000 records and no data loss in the event of a power failure
- Up-rated, fully replaceable battery for extended life in the field
- Heavier than comparable water level instruments for quick & easy down-well deployment
Read More
LevelSCOUT 2X Equipment Options:
,
Applications
- Long term water level & temperature monitoring
- Groundwater monitoring projects & site assessments
- Tidal studies
- Groundwater monitoring network automation
- Watershed, drainage basin and recharge areas
- Stream gauging, lake levels and reservoirs
- Wetlands and storm water run-off monitoring
- Environmental monitoring
- Surface water discharge measurement
- Aquifer level monitoring
- Aquifer storage & recovery
Features
Sensor
Measures water level, temperature & time
Thermally compensated – great where water temperatures vary, such as in streams or industrial tank applications
± 0.05% FS
Low power – 4 to 5 year battery life
316 stainless steel, fluoropolymer & acetal construction (titanium optional)
SDI 12 protocol — for great flexibility
Datalogger
Non-volatile memory so your data will not be lost in the event of a power failure
Pause logging feature – temporarily pause the logging while repositioning or transporting sensor
Delayed start feature – state a specific future start time which makes it easy to set several dataloggers to start at the same time
Cabling & Networking
Wireless connectivity
RS485 network – allows several data loggers to be networked together and provides much longer cable leads
Field-serviceable connectors – easily remove the connector, route cable through well seals, walls, or conduit and then replace connector
Available as cable less or with a user attachable PU or ETFE cable
Software
Comes with free Aqua4Plus control software to get you up and running immediately
View your data in real-time
Easy export to spreadsheets and databases
Barometric compensation utility
Update sensor via firmware while in the field—great for future updates
Specifications
GENERAL

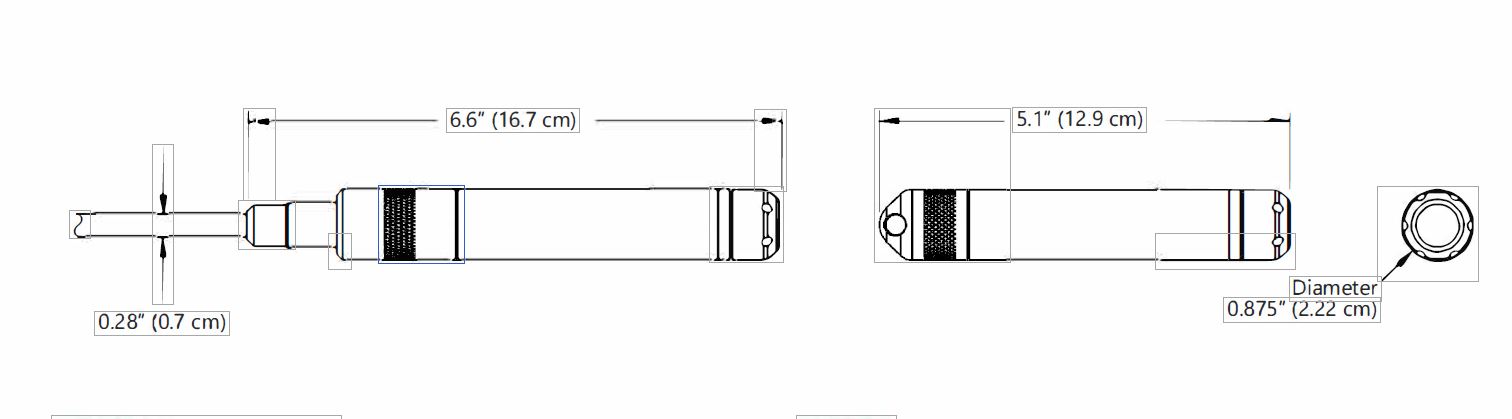

Length (cabled version)
16.7cm (6.6″)
Length (cableless version)
12.9 cm (5.1″)
Diameter
2.22cm (0.875″)
Body Material
316 stainless steel
Wetted Materials
316 stainless steel, acetal, fluoropolymer
Communication
RS485 Modbus® RTU & SDI12
Direct Modbus Read Output
32-bit IEEE floating point
Internal Math
32-bit floating point
SDI-12
(ver.1.3) – ASCII
Operating Temp. Range
-20° C to 60° C
Storage Temp. Range
-40° C to 80° C
Regulatory
CE
LOGGING
Memory
100,000 records
Logging Rate
Recommended: 5 minutes
Configurable down to 1/second
Configurable down to 1/second
Software
Complimentary Aqua4Plus Software
File Formats
.csv / .a4d
POWER
Internal Battery
One replaceable 1/2 AA 3.6V lithium battery
Expected Battery Life
5 years (at 15 minute intervals)
TEMPERATURE
Element Type
Thermistor
Accuracy
± 0.1° C (from -20° C to 60° C)
Resolution
0.01° C
Units
Celsius, Fahrenheit, Kelvin
PRESSURE (Level)
Transducer Type
Silicon strain gauge
Transducer Material
316 stainless steel
Ranges
Absolute1
PSI – 30, 50, 100, 300
FtH2O – 35, 81, 196, 658
mH2O – 10, 24, 59, 200
Units
PSI, FtH2O, in H2O, cmH2O, mmH2O, mH2O, inHg, cmHg, mmHg, Bars, mBars, kPa
Accuracy
± 0.05% FS (@ 20° C)
±0.10% FS (0° C to 40 40° C
±0.10% FS (0° C to 40 40° C
Resolution
0.0034% FS (typical)
Maximum Operating Pressure
1.1 x FS
Over Range Protection
3 x FS (for >300 psi2, 1.75 FS)
Burst Pressure
600 psi (approx. 1350 ft or 410 m)
1 Depth range has 15 PSI subtracted to give actual depth allowed.
2 Approx. 658 feet or 200 meters.
Accessories
Communication Kit
Designed to directly connect your LevelSCOUT 2Xs and BaroSCOUTs dataloggers to your computer, laptop or tablet to provide plug-and-play connectivity to download and read your water level data.
Connect via USB or serial port
Includes Aqua4Plus control software
5V output available
Available as individual adapters/cables or as complete kits
Software
Easy-to-use, free control software which allows you to view the status of your sensor, monitor real time data and create flexible and powerful test sequences.
Easy to use control program for LevelSCOUT 2X water level logger
Delivers field maintenance and data collection directly to your computer
Wealth of features
View the status of water level loggers in your network
Links individual or networks of water level loggers for extensive user control and monitoring capabilities
Access several loggers/sensors each with multiple test sequences
Display data in tabular or graphic format
Export to spreadsheets and databases
Monitor real-time data
Barometric Compensation Utility for absolute pressure sensors
System Requirements:
- Desktop or laptop computer, running Windows XP(SP3) or higher
- 20 MB free hard drive space
- CDROM drive or Internet connection for installing the program
- USB port or 9-pin serial
Dyneema Rope
Strong, light weight, floats in water, chemically inert, water resistant and highly durable.
Highly durable
Water resistant
Light weight
Available in different lengths
Strong
Chemically inert
Floats in water
Resources
Videos
Manuals & Downloads
- Level Logging Equipment Comparison Table
- Van Walt’s Water Level Logger of Choice (ES)
- USB Read Out Installation Guide
- Water Level Readout Options
- LevelSCOUT 2X manual
- Vented v Absolute Data Loggers
- Direct Read Cables for Loggers
- LevelSCOUT 2X Brochure
- Sensor Comparison Table
- Understanding Logger Accuracy
-
Web Pages
- The new water level logger on the block
-
Video Links
- Watch LevelSCOUT 2X in action
- LevelSCOUT Video
- LevelSCOUT 2X Ranges & Accuracy Explained
-
Aqua4Plus Software
- Aqua4Plus Software Download
- Aqua4Plus Quickstart Guide
- Aqua4Plus Software User Manual
New
New Aqua4Plus 2.2 Software
Introducing new Aqua4Plus 2.2 sensor software, an upgraded control software.
Some of its new features include:
- Faster drive
- Automatic sensor detection
- Improved reporting displays
- Real-time graphing function
- New streamlined user interface
