Compact Turbimeter

A compact turbimeter from Palintest® measures turbidity and total suspended solids (TSS), the two most important indicator parameters for water quality.

Category: Tag:

Weekly Rental Prices

3 Day Express First 4 weeks 5th & 6th weeks 7th week +
£73.45 £95.14 £63.43 £47.58

Please Log In or Register to create an order.

You'll return here when you're done.

Login / Register

Product Details

Description

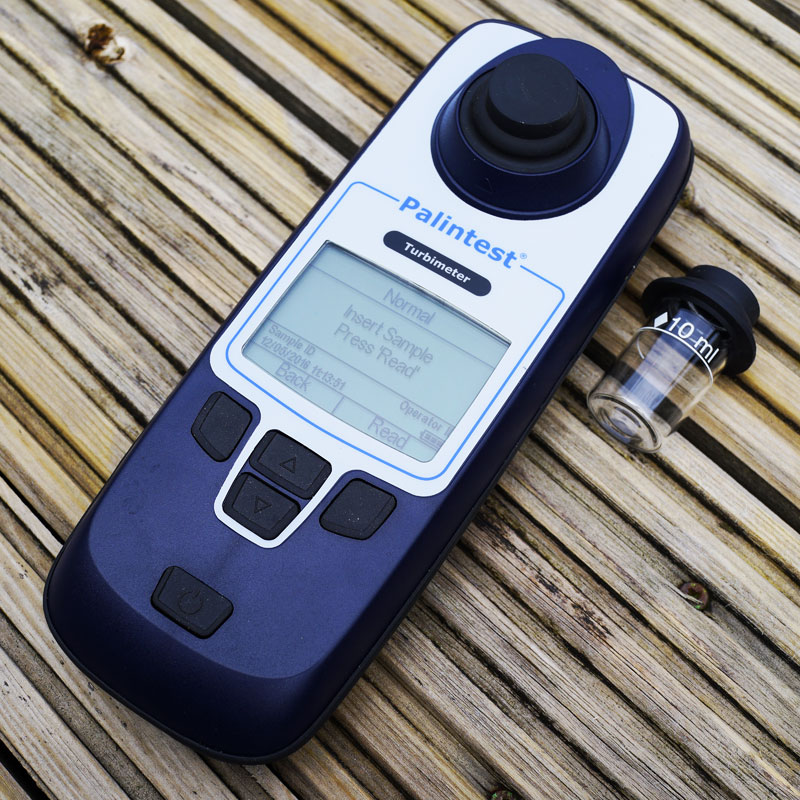

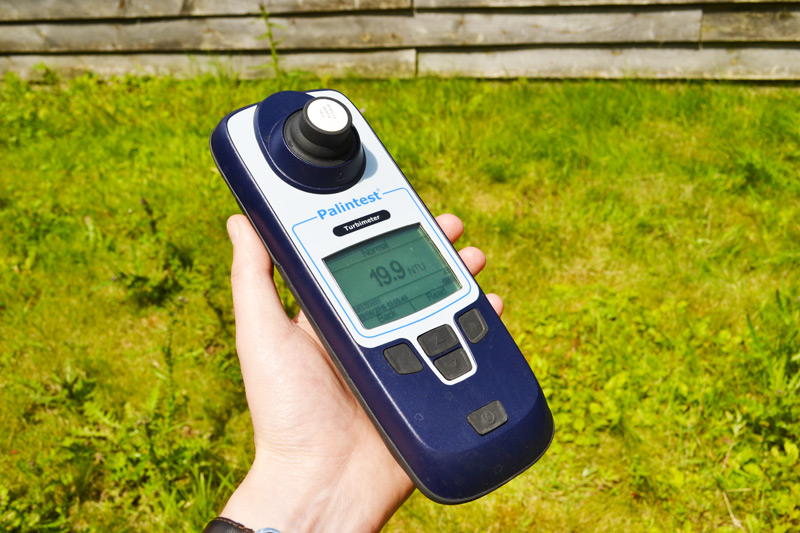

A compact turbimeter from Palintest® measures turbidity and total suspended solids (TSS), the two most important indicator parameters for water quality. The Compact Turbimeter uses unique QuadoptiX™ technology to provide:

  • Maximum reliability and accuracy in the field
  • Variety of operating/reading modes including Total Suspended Solids
  • Full data log including time, date, Operator ID, Sample ID & calibration record for GLP compliance
  • Operates to ISO 7027 standard
  • Accurate for samples containing mobile/settling solids or very low turbidity values
  • Dual validation approach for TSS measurement
  • Optimised for specific sample requirements of normal, average, continuous capture & rapid qualitative evaluation
  • Data stored within the meter for future manipulation and recall

Operates according to ISO 7027 standard, with a wide dynamic range from 0 – 1050 NTU, the Compact Turbimeter is ideal to provide robust and reliable measurement of water turbidity and suspended solids for environmental research, offering a Total Suspended Solids calibration option and continuous measurement mode for settling samples. Delivered in a portable hard case, complete with SDVB calibration standards, the Compact Turbimeter provides accurate field measurement for turbidity and Total Suspended Solids.

  • Model Number: CT12 Compact Turbimeter
  • Ingress Protection: IP 67
  • Weight: 340g (inc batteries)
  • Dimensions (H x W x L): 50 x 82 x 225mm
  • Temp/Humidity Limit: 0 - 50°C, 90%
  • User Interface: Backlit LCD screen, four soft keys, power button
  • Power: 2 'AA' batteries, 5000 readings average, power indication and auto-off
  • Optical System: QuadoptiX™ system, 860nm LED source
  • Reading Modes: Normal, Average (Short, Medium, Long), Continuous Capture, Rapid, Total Suspended Solids (TSS)
  • Result Units: NTU, FTU, FNU, mg/l (TSS)
  • Range: 0 - 1050 NTU
  • Accuracy: 2% of reading
  • Resolution: 0.01 NTU up to 9.99 NTU, 0.1 NTU up to 99.9 NTU, 1 NTU above 100 NTU
  • Repeatability: 1%
  • Cuvette Diameter: 25mm
  • Turbidity Calibration: Four point using SDVB standards (provided) or Formazin
  • TSS Calibration: Direct factor entry (up to 12) or correlation
  • Operator ID: Alphanumeric, up to 12
  • Sample ID: Alphanumeric, up to 12
  • Languages: English, French, Spanish, German, Italian
  • Result Log: 100 data points including time, date, Operator ID, Sample ID, measurement mode
  • Calibration Log: Last 12 good calibrations including time, date, operator ID

Have a question for Van Walt?

Please complete the form below; a member of our team will contact you shortly

Oops! Something went very wrong. Please refresh and try again...
+44 (0) 1428 661 660 +64 (0)3443 5326 +27 21 518 1347

You May Also Need...

  • Peristaltic Pump (Advanced)

    The Peristaltic Pump - Advanced is an electronic peristaltic pump with advanced memory option. This reliable and universal electronic peristaltic pump can create a perfect vacuum; it is a versatile pump for sampling and purging in shallow wells.
    Requires tubing:
    For a head lift of 9.5 m - 4x6 mm Polyethylene tubing (12.20.03) with the 4x8 mm silicone tubing (12.20.46) For a head lift of 5.5 m - 6x8 mm Polyethylene tubing (12.20.04 or 12.20.05) with the 6x10 mm Silicone tubing (12.20.48)
    From £119.35 Login for loyalty discount
    View More

  • 42 mm Bladder Pump & Geocontrol Pro

    A small, portable, very efficient package that includes a built-in high efficiency electrical compressor and optional auto shut off makes these bladder pumps ideal low flow groundwater sampling pumps capable of pumping from depths of up to 60 meters. The small electric compressor uses an external rechargeable lead acid battery.
    Requires Tubing & Bladders:
    Bonded Polyethylene Tubing for 42 mm Bladder Pump 4×6 mm Polyethylene tubing (12.20.03) and  6x8 mm Polyethylene tubing (12.20.04 or 12.20.05) Polyethylene Bladder 42 mm
    From £151.90 Login for loyalty discount
    View More

  • Water Level Dip Meter – 30 m

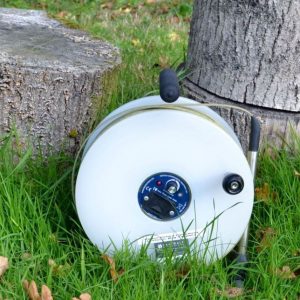

    The Water Level Meter uses a 16mm probe to measure depths in wells to an accuracy of 3mm.
    From £41.73 Login for loyalty discount
    View More

  • YSI Pro Plus

    The YSI Professional Plus handheld multiparameter meter provides extreme flexibility for the measurement of a variety of combinations. The Quatro cable attached to the Pro Plus allows you to utilise 4-ports to measure temperature/conductivity, DO, pH, and ORP. Supplied with Buffer Solutions & Flow Cell. Buffer Solutions are only chargeable if used.
    From £225.75 Login for loyalty discount
    View More

  • 22mm Bladder Pump & Geocontrol Pro

    A small, portable, very efficient package that includes a built-in high efficiency electrical compressor and optional auto shut off makes these bladder pumps ideal low flow groundwater sampling pumps capable of pumping from depths of up to 60 meters. The small electric compressor uses an external rechargeable lead acid battery.
    Requires Tubing & Bladders:
    4×6 mm Polyethylene tubing (12.20.03) Polyethylene Bladder 22 mm
    From £151.90 Login for loyalty discount
    View More

  • Water Level Dip Meter – 60 m

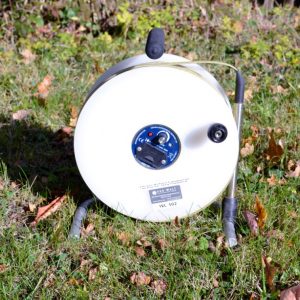

    The Water Level Meter uses a 16mm probe to measure depths in wells to an accuracy of 3mm.
