22mm Bladder Pump & Geocontrol Pro

A small, portable, very efficient package that includes a built-in high efficiency electrical compressor and optional auto shut off makes these bladder pumps ideal low flow groundwater sampling pumps capable of pumping from depths of up to 60 meters. The small electric compressor uses an external rechargeable lead acid battery.

Requires Tubing & Bladders:

4×6 mm Polyethylene tubing (12.20.03)

Polyethylene Bladder 22 mm

Category: Tag:

Weekly Rental Prices

3 Day Express First 4 weeks 5th & 6th weeks 7th week +
£144.67 £187.59 £125.59 £93.8

Please Log In or Register to create an order.

You'll return here when you're done.

Login / Register

Product Details

Description

A small, portable, very efficient package that includes a built-in high efficiency electrical compressor and optional auto shut off makes these bladder pumps ideal low flow groundwater sampling pumps capable of pumping from depths of up to 60 meters. The small electric compressor uses an external rechargeable lead acid battery. Air does not make contact with the liquid. These stainless steel pumps use a replaceable bladder either in Teflon or PE for easy cleaning and prevention of sample cross contamination and with diameters starting at 22 mm to fit in a 1-inch well. Bladder Pumps are ideal groundwater sampling pumps.

Requires Tubing & Bladders:

4×6 mm Polyethylene tubing (12.20.03)

Polyethylene Bladder 22 mm

Benefits:
  • Very small, highly efficient package
  • Controller with built in high efficiency electrical compressor
  • Small, lightweight and very portable
  • Easy to use
  • Dedicated systems available for best low flow results
  • Pumps to depths of 60 m or more in 1″ diameter or larger wells
  • Stainless steel pump is easy to clean and maintain
  • Intrinsically safe design – pump operates on compressed air
  • Disposable bladders and tubing mean no cross contamination
  • Accessories and consumables are readily available and very cost effective
  • Available in 42mm and 22mm sizes
  • Shorter pump is ideal if wells are not straight
  • Strong hose barbs
  • Can sample both product and water from contaminated wells
  • Can be run straight from a car cigarette lighter socket (recommended).
  • Max pressure: 100psi
  • Power supply: Hand held 12v battery or car cigarette lighter socket
  • Head lift of water: 60m
  • Product material: Stainless steel, teflon
  • Bladder material: HDPE
  • Diameter: 22mm or 42mm
  • Flow rate: Pumps up to 124ml per cycle (42mm Bladder pump)

Have a question for Van Walt?

Please complete the form below; a member of our team will contact you shortly

Oops! Something went very wrong. Please refresh and try again...
+44 (0) 1428 661 660 +64 (0)3443 5326 +27 21 518 1347

You May Also Need...

  • Additional Battery Pack

    An additional battery pack for the Advanced Peristaltic Pump, Bladder Pump & Standard Peristaltic Pump
    From £15.9 Login for loyalty discount
    View More

  • Oil Interface Meter – 60 m

    An Oil Interface Meter that uses a 16mm probe for the accurate measurement of hydrocarbons as thin as 1.52 mm in wells as small as 19mm in diameter and for detecting tank leakage. As the Meter is lowered down a well and contacts the product layer, a solid tone and green light alarm is activated on the reel.
    From £96.98 Login for loyalty discount
    View More

  • Water Level Dip Meter – 30 m

    The Water Level Meter uses a 16mm probe to measure depths in wells to an accuracy of 3mm.
    From £39.75 Login for loyalty discount
    View More

  • YSI Pro Plus

    The YSI Professional Plus handheld multiparameter meter provides extreme flexibility for the measurement of a variety of combinations. The Quatro cable attached to the Pro Plus allows you to utilise 4-ports to measure temperature/conductivity, DO, pH, and ORP. Supplied with Buffer Solutions & Flow Cell. Buffer Solutions are only chargeable if used.
    From £215 Login for loyalty discount
    View More

  • YSI ProDSS

    Designed for demanding field work the ProDSS is the latest, smartest, most innovative portable water quality multi-parameter instrument from the YSI stable. Supplied with Buffer Solutions & Flow Cell. Buffer Solutions are only chargeable if used.
    From £277 Login for loyalty discount
    View More

  • Bladders for 22 mm Bladder Pump

    Polyethylene Bladder for 22mm Bladder Pump
    £4.50 -
    View More

  • Disposable In-Line Filters – 12.30.01

    On site in-line filtration is required when sampling or monitoring groundwater for contamination and metals. These In-Line Filters have 0.45 micron pores. Pack of 5. Capacity filter area of 20cm2
    £47.39 -
    View More

  • Disposable In-Line Large White Filter

    On site in-line filtration is required when sampling or monitoring groundwater for contamination and metals. These In-Line Filters have 0.45 micron pores. It is more economical to use the larger filters when the water is dirty. The filters are hallmarked and the larger filters have been tested for over 100 parameters. High capacity filter area of 700cm2
    £30.60 -
    View More

  • Disposable In-Line Medium Blue Filter

    On site in-line filtration is required when sampling or monitoring groundwater for contamination and metals. These In-Line Filters have 0.45 micron pores. It is more economical to use the larger filters when the water is dirty. The filters are hallmarked and the larger filters have been tested for over 100 parameters.
    £27.00 -
    View More

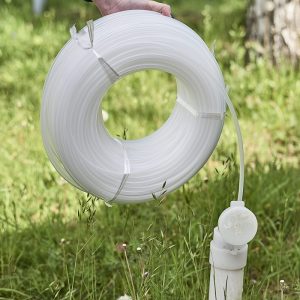

  • Polyethylene Tubing
