YSI ProDSS

Designed for demanding field work the ProDSS is the latest, smartest, most innovative portable water quality multi-parameter instrument from the YSI stable.

Supplied with Buffer Solutions & Flow Cell. Buffer Solutions are only chargeable if used.

Category: Tag:

Weekly Rental Prices

3 Day Express First 4 weeks 5th & 6th weeks 7th week +
£283 £397 £283 £227

Please Log In or Register to create an order.

You'll return here when you're done.

Login / Register

Product Details

Description

Designed for demanding field work the ProDSS is the latest, smartest, most innovative portable water quality multi-parameter instrument from the YSI stable. The ProDSS measures water parameters like dissolved oxygen (optical), pH, ORP, conductivity, specific conductance, salinity, TDS, resistivity, TSS, chloride, nitrate, depth, temperature and, most importantly turbidity.

YSI has taken the advanced technology from the EXO series to make the new ProDSS the best handheld available. This instrument is rugged and reliable with intelligent, user-replaceable digital sensors that can be connected to any port and that are automatically recognised by the instrument and retain the calibration data.

With optional GPS and depth the ProDSS is completely customisable* and with military specification connectors, IP67 waterproof, rubber over-moulded case and 1-metre drop tests, durability is ensured for longevity of sampling even in the harshest field conditions.

*Rental instruments will be configured/calibrated to measure temperature/conductivity, DO, pH, ORP and turbidity.

Benefits:
The ProDSS is smart, cost-effective and adaptable for the future. Its high-impact body is built to record water quality to depths of 250 meters. The data is stored on-board the instrument for downloading to a laptop on completion of the monitoring sequence.

  • YSI pedigree
  • Real time graph plotting and display
  • Digital instrument with smart sensors that retain calibration status
  • True multi-parameter instrument
  • Single cable
  • Universal ports which can accept any 4 sensors plus depth.
  • Colour display
  • Backlit keypad
  • Optional GPS
  • Rechargeable lithium-ion battery
  • Extensive memory allowing > 100,000 data sets to be saved with site list and data ID tag information
  • 400 GLP (calibration) records
  • Easily transferable data
  • PC program included with the instrument, or backed up to USB memory stick via the built-in, waterproof USB On-The-Go port.
  • Field replaceable sensors
  • Warranty: 3-year instrument; 2-year industry-leading cable assembly and sensors; 1-year pH and pH/ORP sensor modules; 6-months ammonium, nitrate and chloride sensor module
  • Rugged, waterproof military spec connectors
  • Durable enclosure with rubber over-moulded waterproof (IP-67) case
  • Fully backed by the Van Walt Technical team.
  • Size: 8.3 cm width x 21.6 cm length x 5.6 cm depth (3.25 in. x 8.5 in. x 2.21 in.)
  • Weight with batteries: 567 grams (1.25 lbs)
  • Power: Rechargeable lithium-ion battery pack providing ~48 hours of battery life (instrument only with backlight off)
  • Instrument operating temperature: 0 to 50 °C (32 to 122 °F)
  • Instrument storage temperature: 0 to 45 °C (32 to 113 °F) with battery installed; 0 to 60 °C (32 to 140 °F) without battery installed
  • Display: Colour, LCD graphic display
  • USB port: Built-in micro USB On-The-Go port for PC connection, recharging/powering the ProDSS & connecting directly to a USB stick
  • Cables: Available with or without depth sensor in 1, 4, 10, 20, 30, 40, 50, 60, 70, 80, 90, and 100-meters
  • Sensor ports: 4 universal sensor ports on each cable; can accept any ProDSS sensor
  • Warranty: 3-year instrument; 2-year bulkhead, cable assembly, and sensors; 1-year pH and pH/ORP sensor modules, ODO sensor caps & Li-ion battery pack; 6-months ammonium, nitrate & chloride sensor modules
  • Memory: > 100000 data sets
  • Logging modes: Single point or continuous with auto-stable feature
  • GLP compliance: Yes; 400 detailed GLP records can be stored & are available to view, download & print.
  • Languages: English, Spanish, Portuguese, French, German, Italian, Japanese, Norwegian, Simplified Chinese, Traditional Chinese
  • Certifications: CE; RoHS; IP-67; WEEE; FCC; UN Part III, Section 38.3, Test methods for lithium-ion batteries (Class 9)
  • GPS: Optional internal GPS; coordinates are stored with measurement data & site lists
  • Sites & Data ID: 100 user-defined sites and 100 user-defined data ID tags

Get in contact with us about this product!

We'll respond to any specific queries you have - just fill out the fields below.

1 review

Add a review

  1. nxZkA

    830793 422009Thank you for sharing with us, I believe this site truly stands out : D. 602530

You May Also Need...

  • Peristaltic Pump (Advanced)

    The Peristaltic Pump - Advanced is an electronic peristaltic pump with advanced memory option. This reliable and universal electronic peristaltic pump can create a perfect vacuum; it is a versatile pump for sampling and purging in shallow wells.
    Requires tubing:
    For a head lift of 9.5 m - 4x6 mm Polyethylene tubing (12.20.03) with the 4x8 mm silicone tubing (12.20.46) For a head lift of 5.5 m - 6x8 mm Polyethylene tubing (12.20.04 or 12.20.05) with the 6x10 mm Silicone tubing (12.20.48)
    From £113 Login for loyalty discount
  • 42 mm Bladder Pump & Geocontrol Pro

    A small, portable, very efficient package that includes a built-in high efficiency electrical compressor and optional auto shut off makes these bladder pumps ideal low flow groundwater sampling pumps capable of pumping from depths of up to 60 meters. The small electric compressor uses an external rechargeable lead acid battery.
    Requires Tubing & Bladders:
    4×6 mm Polyethylene tubing (12.20.03) and  6x8 mm Polyethylene tubing (12.20.04 or 12.20.05) Polyethylene Bladder 42 mm
    From £149 Login for loyalty discount
  • Peristaltic Pump (Standard)

    A standard, electronic, basic Peristaltic Pump with dial operated speed controls. The Peristaltic Pump is designed for pressure or vacuum pumping of liquids, ideally suited for low flow field sample removal from shallow wells.
    Requires Tubing:
    Silicone tubing (GTSIL)
    From £93 Login for loyalty discount

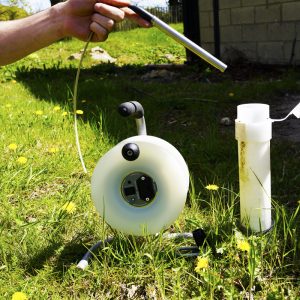

  • Oil Interface Meter – 60 m

    An Oil Interface Meter that uses a 16mm probe for the accurate measurement of hydrocarbons as thin as 1.52 mm in wells as small as 19mm in diameter and for detecting tank leakage. As the Meter is lowered down a well and contacts the product layer, a solid tone and green light alarm is activated on the reel.
    From £115 Login for loyalty discount
  • MP1 Pump with Variable Frequency Drive

    The MP1 Pump is an electric impeller driven pump that can be used for sampling and purging deep wells. The MP1 is the perfect groundwater sampling or aquifer test pump.
    Requires Tubing:
    12×16 mm Polyethylene tubing (12.20.16 or 12.20.17)
    From £443 Login for loyalty discount

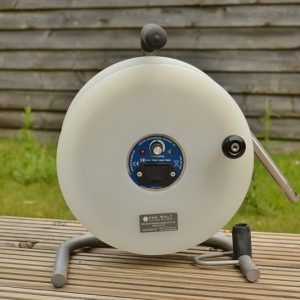

  • Water Level Dip Meter – 30 m
