Geosub 2 Pump & Controller

The Geosub 2 Pump & Controller system is a versatile, stainless steel, pumping solution. A DC pump for low flow sampling and high flow well purging. Robust and tested design with stainless steel components for sampling in the harshest well conditions. The Geosub 2 operates with the Geosub 2 Controller and a portable reel system or as a dedicated well system to 60 m depth, deeper if a Drop Tube Assembly is added.

Contact Van Walt

Lifetime Technical Support

Free Training

Quick Response Times

Hold Stock

Advantages

  • Unique pump system with no comparable competitors for groundwater monitoring
  • System CE Certification
  • A high-quality, rugged, reliable & versatile pump
  • One year Manufacturer’s Warranty
  • Rugged construction and easy to connect cables for quick & simple setup and portability
  • Low flow or high flow options
  • Suitable for PFAS sampling
  • Pump to 60 m head of water or can go deeper with drop tube assembly
Read More

Geosub 2 Pump & Controller

Call Van Walt
+44 (0) 1428 661 660 Call Van Walt
+64 (0)3443 5326 Call Van Walt
+27 21 518 1347

Geosub 2 Pump & Controller Equipment Options:

,

Applications

  • Monitoring well installation
  • Water quality research
  • Monitoring water quality
  • Water sampling
  • Ground water sampling
  • High and Low flow purging and sampling
  • PFAS sampling

Specifications

Pump
Wetted Parts
316 Stainless steel, PEEK, HDPE
Electric
Full Load Rating
2/3 HP
Maximum Amp Draw
10 amps DC
Overload
Incorporated into Geosub 2 Controller

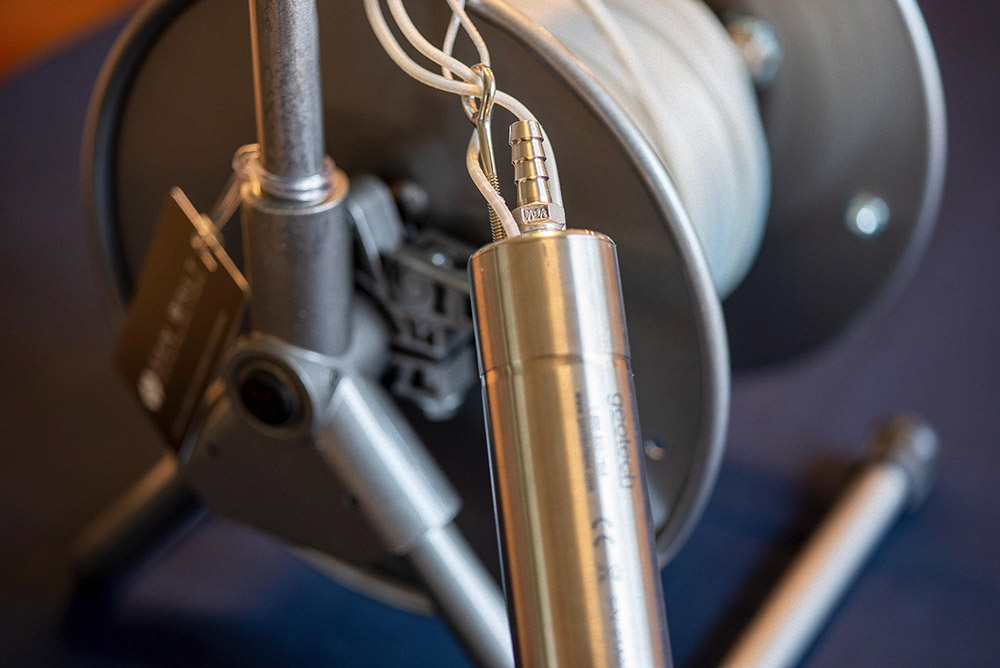

Discharge Port Connection
1/4″ female NPT (includes 3/8″ barb)
Dimensions & Weight (Pump & Motor):
Dimensions of Pump
34cm L x 4.5cm OD (13.2″ L x 1.75″ OD )
Net Weight of Pump w/o Lead
1.8 kg (4 lbs.)
Cable
Material
Two 12 gauge conductors with HDPE jacket, and integrated safety cable

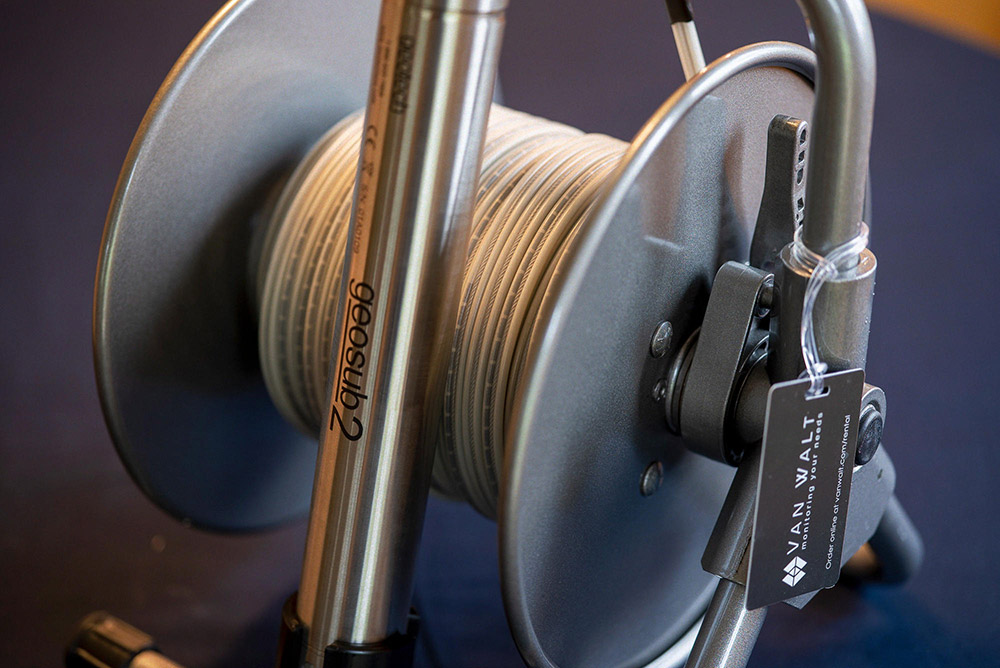

Weight with Geo Reel & Safety Cable
100′ (30.5 m) of 12 AWG & Safety Cable
8.3 kg (18.3 lbs.)
150′ (45 m) of 12 AWG & Safety Cable
9.8 kg (21.6 lbs)
200′ (61 m) of 12 AWG & Safety Cable
11.3 kg (24.9 lbs.)

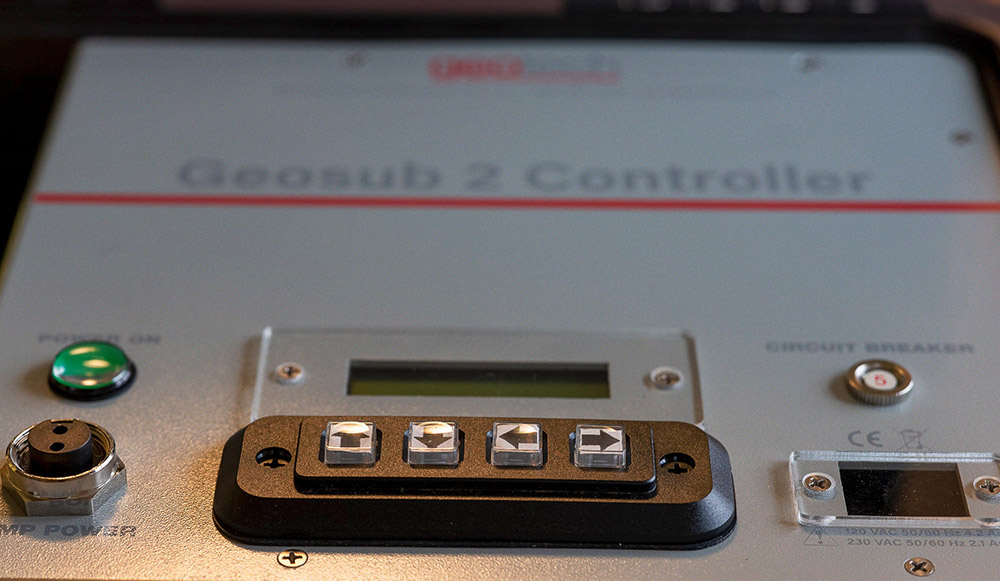

Controller
Input Power Range
  • 100-130 Volts AC
  • 50/60 HZ 310 Watts
  • 4.2 amps nominal full load 115 Volts AC
  • 200-250 Volts AC
  • 50/60 HZ 310 Watts
  • 2.1 amps nominal full load 230 Volts AC
Output Power
Variable 0-46V DC @ <300 Watts
Output Power @Maximum Voltage
10 amps maximum
Operating Temperature
-29°C to 38°C (-20°F to 100°F) ambient air temp.
Humidity
Up to 90% humidity
Weight of Unit
7.46 kg (16.45 lbs.)
Size of Unit
41cm L x 33cm W x 18cm H (16″ L x 13″ W x 7″ H)
Input Protection
5A CB
Certification
CE

Accessories

DC to AC Inverter

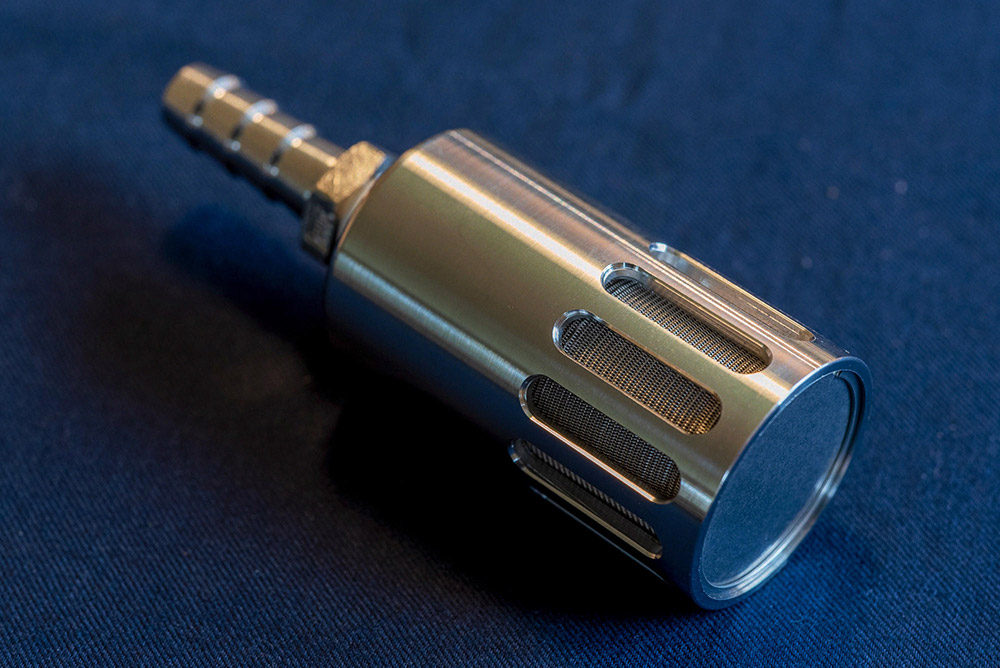

Drop Tube Assembly
Tubing
