PID MiniRAE Lite VOC Monitoring

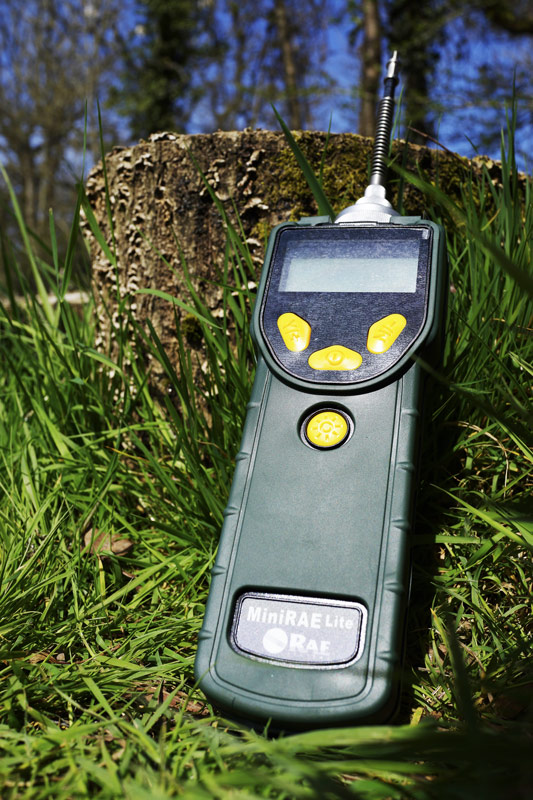

PID MiniRAE Lite

A reliable handheld volatile organic compound (VOC) monitor with a range of 0 to 5,000 ppm to make it an ideal instrument for a wide range of applications. Often used in conjuction with an LEL for enhanced safety on site.

Categories: , , Tag:

Weekly Rental Prices

3 Day Express First 4 weeks 5th & 6th weeks 7th week +
£105.72 £136.72 £91.41 £68.36

Please Log In or Register to create an order.

You'll return here when you're done.

Login / Register

Product Details

Description

A reliable handheld volatile organic compound (VOC) monitor with a range of 0 to 5,000 ppm therefore an ideal instrument for a wide range of applications.

Benefits:

  • Accurate VOC monitoring
  • Fast 3 second response time
  • Humidity compensation
  • Easy to maintain and operate
  • Large graphic display for ease of use
  • Field-interchangeable battery pack
  • Integrated flashlight for better visibility in low light
  • 12 encoded languages
  • Rugged housing for use in the harshest environments
  • IP-65 design
  • Tough, flexible inlet Flexi-Probe™
  • 3 large keys operable with 3 layers of gloves
  • Strong, built-in sample pump draws up to 100′ (30m) horizontally or vertically
  • Loud audible alarm
  • Bright red flashing visible alarm
  • Interchangeable drop-in Lithium-ion and alkaline battery pack.

Applications:

  • Anywhere you may want to monitor VOCs like monitoring on petrol forecourts
  • Environmental Cleanups/ Remediation
  • Leak Detection
  • Emergency Response
  • Urban Search & Rescue
  • Venue Protection
  • Worker Exposure



  • Size: 25.5 cm L x 7.6 cm W x 6.4 cm H
  • Weight: 738g
  • Sensors: Photoionization sensor with standard 10.6 lamp
  • Battery:
    • Alkaline battery adapter
    • External field-replaceable lithium-ion battery pack
  • Operating hours: 12 hours of operation
  • Display Graphic: 4 lines, 28 x 43 mm, with LED backlight
  • Keypad: 1 operation and 2 programming keys, 1 flashlight on/off
  • Direct Readout:
    • Instantaneous reading
    • VOCs as ppm by volume
    • High & low values
    • Date & time
  • Alarms:
    • 95dB at 12" (30 cm) buzzer and flashing red LED to indicate exceeded preset limits
    • High: 3 beeps and flashes per second
    • Low: 2 beeps and flashes per second
    • Alarm latching with manual override or automatic reset
    • Additional diagnostic alarm and display message for low battery and pump stall
  • EMI/RFI: Highly resistant to EMI/RFI. Compliant with 89/336/EEC.
  • IP Rating: IP65
  • Calibration: Two-point calibration for zero and span
  • Sampling pump:
    • Internal, integrated flow rate at 400 cc/mn
    • Sample from 100' (30m) horizontally and vertically
  • Low flow alarm: Auto shut-off pump at low-flow condition
  • Hazard area approval: None
  • Operating temperature: -20° to 50° C
  • Humidity: 0 to 95% relative humidity (non-condensing)

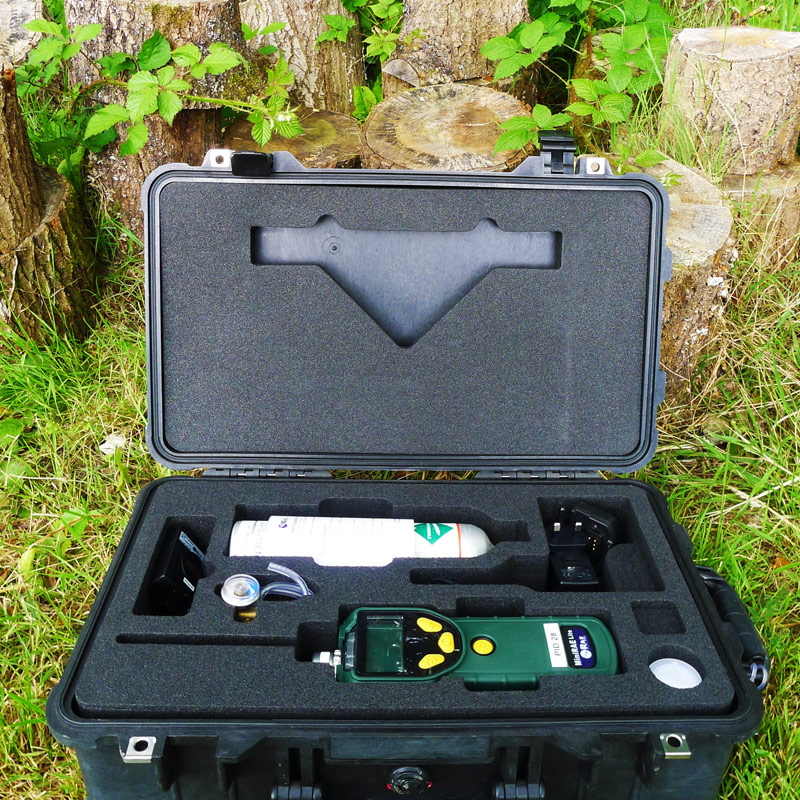

  • Attachments: Durable green rubber boot

Have a question for Van Walt?

Please complete the form below; a member of our team will contact you shortly

Oops! Something went very wrong. Please refresh and try again...
+44 (0) 1428 661 660 +64 (0)3443 5326 +27 21 518 1347

You May Also Need...

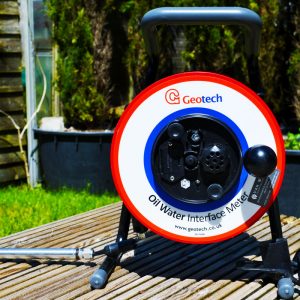

  • ATEX Certified Interface Meter – 30 m
