Oil Interface Meter – 30 m

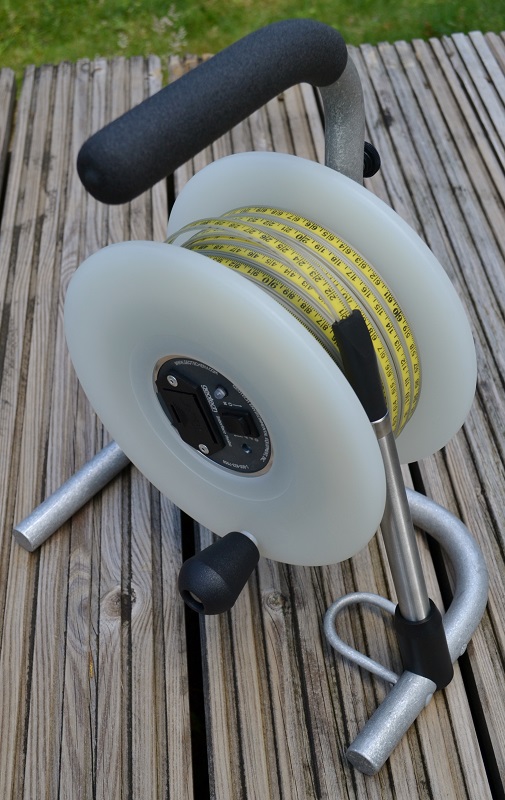

An Oil Interface Meter that uses a 16mm probe for the accurate measurement of hydrocarbons as thin as 1.52 mm in wells as small as 19mm in diameter and for detecting tank leakage. As the Meter is lowered down a well and contacts the product layer, a solid tone and green light alarm is activated on the reel.

Categories: , Tag:

Weekly Rental Prices

First 4 weeks 5th & 6th weeks 7th week +
£122 £81 £61

Please Log In or Register to create an order.

You'll return here when you're done.

Login / Register

Product Details

Description

Description

An Oil Interface Meter that uses a 16 mm probe for the accurate measurement of hydrocarbons as thin as 1.52 mm in wells as small as 19mm in diameter and for detecting tank leakage. As the Meter is lowered down a well and contacts the product layer, a solid tone and green light alarm is activated on the reel. When the probe detects water, the tone begins to oscillate and the light changes to red.

Benefits:

  • Highly accurate Kynar ® coated steel tape
  • Teflon ® and stainless steel probe field replaceable probe is only 16mm in diameter
  • Tape with mm resolution
  • Audible and visible alarms activated on reel when probe contacts product and water
  • Water resistant padded carrying case to protect instrument
  • Auto shut-off circuit to extend battery life
  • Extremely durable polypropylene storage reel with rugged aluminium frame
  • Stainless Steel conductors for durability
  • PTFE and stainless steel probe with Viton® strain relief
  • Built in reel hanger for longer tape life.
Size: H 33cm x W 28cm x D 18cm Probe: O.D. 1.59cm x L 16.5cm Length/Weight: 200foot(60m) =11lbs. (5kg) Accuracy: 100th of a foot/100' Material: Reel Polypropylene and aluminium Tape: Kynar® coated steel Probe: 316 stainless steel, ETP, PTFE Power: 9Volt DC alkaline battery Alarm: Audible & Visual
Accuracy with Oil Interface Dip Meters Video Quick Start Guide Analysing Product Layers Info Sheet
