PIDS
Van Walt offers two market leading, reliable handheld PIDs for volatile organic compound (VOC) monitoring. With ranges of 0 to 15,000 ppm therefore ideal instruments for a wide range of applications.
Contact Van WaltAdvantages
Our PIDS are the MiniRAE Lite with a range of 0 to 5,000 ppm and the MiniRAE 3000, an advanced handheld volatile organic compound (VOC) monitor with an extended range of 0 to 15,000 ppm.
PIDS Equipment Options:
,
Types of PID
MiniRAE Lite
Accurate VOC monitoring
Fast 3 second response time
Humidity compensation
Easy to maintain and operate
Large graphic display for ease of use
Field-interchangeable battery pack
Integrated flashlight for better visibility in low light
12 encoded languages
Rugged housing for use in the harshest environments
IP-65 design
Tough, flexible inlet Flexi-ProbeTM
3 large keys operable with 3 layers of gloves
Strong, built-in sample pump draws up to 100′ (30m) horizontally or vertically
Loud audible alarm
Bright red flashing visible alarm
Interchangeable drop-in
MiniRAE 3000
Proven PID technology
View real-time sensor data and alarm status
3-second response time
Extended range up to 15,000 ppm with improved linearity
Humidity compensation with integral humidity and temperature sensors
Real-time wireless data transmission with built-in RF modem or Bluetooth
Designed for ease of use
Easy access to lamp and sensor in seconds without tools
Large graphic display for easy overview of gas type, Correction Factor and concentration
Field-interchangeable battery pack replaced in seconds without tools
Integrated flashlight for better view in dark conditions
User-friendly screens, including dataplot chart view
Integrated RAE Systems Correction Factors list for more than 200 compounds
Multi-language support with 12 languages encoded
Rugged housing withstands use in the harshest environments
IP67 waterproof design for easy cleaning and decontamination in water
Strong protective removable rubber boot
Strong, built-in sample pump draws up to 100′ (30m) horizontally or vertically
Loud audible alarm
Bright red flashing visible alarm
Interchangeable drop-in Lithium-ion and alkaline battery pack
Charging cradle doubles as an external battery charger
Automatic lamp type recognition
Duty-cyclingTM lamp and sensor auto cleaning technology
Tough, flexible inlet Flexi-ProbeTM
3 large keys operable with 3 layers of gloves
Applications
- Anywhere you may want to monitor VOCs like monitoring on petrol forecourts
- Environmental Cleanups/ Remediation
- Leak Detection
- Emergency Response
- Urban Search & Rescue
- Venue Protection
- Worker Exposure
Specifications
MiniRAE Lite

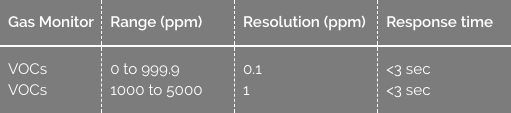

Sensor Specifications
Gas Monitor
Range (ppm)
Resolution (ppm)
Response time
VOCs
VOCs
VOCs
0 to 999.9
1000 to 5000
1000 to 5000
0.1
1
1
<3 sec
<3 sec
<3 sec
Detector Specifications
Size
25.5 cm L x 7.6 cm W x 6.4 cm H
Weight
738g
Sensors
Photoionization sensor with standard 10.6 lamp
Battery
– Alkaline battery adapter
– External field-replaceable lithium-ion battery pack
– External field-replaceable lithium-ion battery pack
Operating hours
12 hours of operation
Display Graphic
4 lines, 28 x 43 mm, with LED backlight
Keypad
1 operation and 2 programming keys, 1 flashlight on/off
Direct Readout
Instantaneous reading
– VOCs as ppm by volume
– High & low values
– Date & time
– VOCs as ppm by volume
– High & low values
– Date & time
Alarms
95dB at 12″ (30 cm) buzzer and flashing red LED to indicate exceeded preset limits
– High: 3 beeps and flashes per second
– Low: 2 beeps and flashes per second
– Alarm latching with manual override or automatic reset
– Additional diagnostic alarm and display message for low battery and pump stall
– High: 3 beeps and flashes per second
– Low: 2 beeps and flashes per second
– Alarm latching with manual override or automatic reset
– Additional diagnostic alarm and display message for low battery and pump stall
EMI/RFI
Highly resistant to EMI/RFI. Compliant with 89/336/EEC.
IP Rating
IP65
Calibration
Two-point calibration for zero and span
Sampling pump
– Internal, integrated flow rate at 400 cc/mn
– Sample from 100′ (30m) horizontally and vertically
– Sample from 100′ (30m) horizontally and vertically
Low flow alarm
Auto shut-off pump at low-flow condition
Hazard area approval
None
Operating temperature
-20° to 50° C
Humidity
0 to 95% relative humidity (non-condensing)
Attachments
Durable green rubber boot
MiniRAE 3000
Sensor Specifications
Gas Monitor
Range (ppm)
Resolution (ppm)
Response time
VOCs
0 to 999.9
1000 to 15,000
1000 to 15,000
0.1
1
1
<3 sec
<3 sec
<3 sec
Detector Specifications
Size
25.5 cm L x 7.6 cm W x 6.4 cm H
Weight
738g
Sensors
Photoionization sensor with standard 10.6 eV or optional 9.8 eV or 11.7 eV lamps
Battery
– Rechargeable, external field-replaceable Lithium-Ion battery pack
– Alkaline battery adapter
– Alkaline battery adapter
Operating hours
16 hours of operation (12 hours with alkaline battery)
Display Graphic
4 lines, 28 x 43 mm, with LED backlight
Keypad
1 operation and 2 programming keys, 1 flashlight on/off
Direct Readout
Instantaneous reading
– VOCs as ppm by volume
– High values
– STEL and TWA
– Battery and shutdown voltage
– Date, time, temperature
– VOCs as ppm by volume
– High values
– STEL and TWA
– Battery and shutdown voltage
– Date, time, temperature
Alarms
95dB at 12″ (30 cm) buzzer and flashing red LED to indicate exceeded preset limits
– High: 3 beeps and flashes per second
– Low: 2 beeps and flashes per second
– STEL and TWA: 1 beep and flash per second
– Alarms latching with manual override or automatic reset
– Additional diagnostic alarm and display message for low battery and pump stall
– High: 3 beeps and flashes per second
– Low: 2 beeps and flashes per second
– STEL and TWA: 1 beep and flash per second
– Alarms latching with manual override or automatic reset
– Additional diagnostic alarm and display message for low battery and pump stall
EMI/RFI
Highly resistant to EMI/RFI. Compliant with EMC directive (2004/108/EC); R & TTE directive (1999/5/EC)
IP Rating
– IP67 unit off and without flexible probe
– IP65 unit running
– IP65 unit running
Calibration
Two-point or three-point calibration for zero and span.
Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
Sampling pump
– Internal, integrated flow rate at 500 cc/mn
– Sample from 100′ (30m) horizontally and vertically
– Sample from 100′ (30m) horizontally and vertically
Low flow alarm
Auto shut-off pump at low-flow condition
Hazard area approval
Europe: ATEX II 2G EEx ia IIC T4
Operating temperature
-20° to 50° C
Humidity
0 to 95% relative humidity (non-condensing)
Attachments
Durable bright yellow rubber boot
