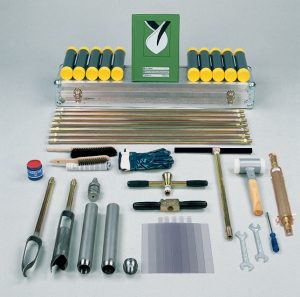

Liner Sampler Set

A comprehensive Liner Sampler Set for undisturbed soil sampling. Suitable for hard or soft soils. Uses a stainless-steel core sampler with clear sample tubes so good for onsite analysis. Solid  cutting head

Contact Van Walt

Advantages

  • Liner allows easy removal of soil sample
  • View the sample directly in the field
  • View the sample without touching
  • Two options available for harder and softer soils
  • Stainless steel sampler body
  • Packed in an aluminum transport case
  • Easy transportation of the sealed sample to the laboratory.
Read More

Liner Sampler Set

Call Van Walt
+44 (0) 1428 661 660 Call Van Walt
+64 (0)3443 5326

Liner Sampler Set Equipment Options:

Applications

  • Soil sampling above groundwater table
  • Soil sampling below groundwater table
  • Environmental soil research
  • Undisturbed sampling
  • Soil texture research
  • Root zone sampling

  • Samples are suitable for:

  • Soil fertility determinations
  • Assessment of soil structure
  • Volume weight determinations
  • Determination of granular composition
  • Soil technical measurements
  • Field education

Options

  • Liner Sampler for sampling in more or less soft soils up to a depth of 7 m
  • Liner Sampler for sampling in hard soils up to a depth of 7 m

Specifications

GENERAL
Connection
Screw-thread
Maximum root thickness
10 mm
Maximum sample depth
7 m
Product material
Stainless steel, iron, other material
Sample diameter
50 mm
Sample length
300 mm
Sample specification
Undisturbed
Sample stored in
Tube
Sample volume
590 ml
Package size
130 x 50 x 72 cm
Weight
38 kg
