LEL Personal Protection Monitor – Calibrated to Pentane

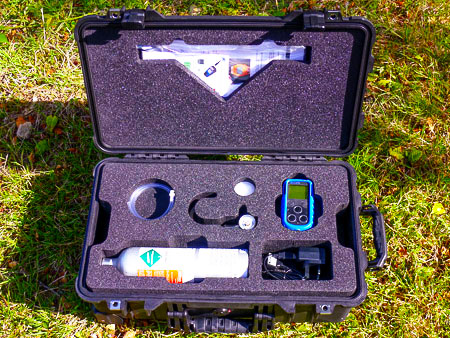

Part of the ‘Safe on Site’ package, a robust and accurate portable gas detector with audible and visual alarms which sound in the event of exposure to flammable gases, oxygen and a wide range of toxic gases onsite.

Categories: , Tag:

Weekly Rental Prices

First 4 weeks 5th & 6th weeks 7th week +
£104.19 £69.46 £52.09

Please Log In or Register to create an order.

You'll return here when you're done.

Login / Register

Product Details

Description

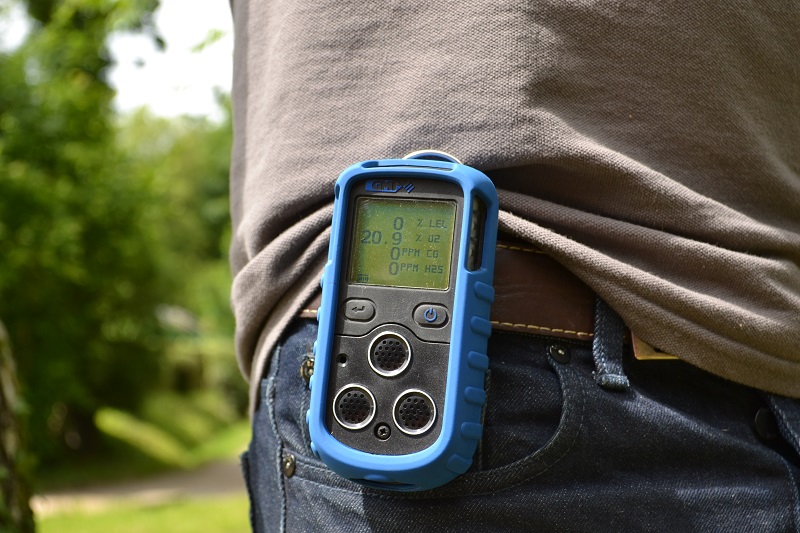

A robust and accurate portable gas detector with audible and visual alarms which sound in the event of exposure to flammable gases, oxygen and a wide range of toxic gases onsite.

Detecting and displaying up to four gases simultaneously this monitor can be configured to detect a combination of Methane (or other flammable gases), Oxygen, Carbon Monoxide, Hydrogen Sulphide.

Ideal for keeping you safe on petrol forecourts or landfill sites.

Benefits:

  • Simple one-button operation
  • No complex set up routines – out of the box performance
  • Internal Pump
  • Intrinsically safe
  • Can be calibrated to either Methane or Pentane depending on your required application
  • Audible, visual and vibrating alarms
  • Lightweight yet robust construction
  • Sensor integrity checking
  • Ease of maintenance
  • Fully backed by the Van Walt Technical team.
  • Size: 121 x 59 x 32mm (4.8" x 2.3" x 1.3")
  • Weight:
    • 230g (8oz) with pump
    • 215g (7.6oz) without pump
  • Temperature: -20oC to +50oC (-4oF to 122oF)
  • Humidity: 0 to 95% R.H non-condensing
  • Alarms: Highly visible flashing LED, piercing >90dB audible
  • Display: Green and red LCD backlight display
  • Datalogging:
    • Timed: 24 hours of timed logs at 1 log per minute
    • Session: Minimum of 180 logs
    • Calibration: Minimum of 8 calibration logs
    • Bump Logs: Minimum of 180 logs
  • Battery:
    • Lithium Ion rechargeable battery
    • Run Time: Up to 14 hrs (diffusion)
    • Charging Time < 4 hrs
  • Enclosure: High impact rubberized polycarbonate case
  • Drop Test: 3m (10ft)
  • IP Rating: IP67 (Dust-tight and waterproof to 1m)
  • Response Times:
    • (T90):LEL = 10 secs (IEC 60079-29-1)
    • O2 = 12 secs (BSEN 50 104)
    • CO < 20 secs
    • H2S < 20 secs
  • Approvals:
    • IEC Ex ia d IIC T4 Gb
    • ATEX Ex II 2 G Ex ia d IIC T4
    • CSA Class 1 Div 1 Groups A,B,C,D, T4
    • Class 1, Zone 1 EX ia d IIC T4
    • MED (0038/YY) - Module B & E
    • CE0518

Have a question for Van Walt?

Please complete the form below; a member of our team will contact you shortly

Oops! Something went very wrong. Please refresh and try again...
+44 (0) 1428 661 660 +64 (0)3443 5326 +27 21 518 1347

You May Also Need...

  • Oil Interface Meter – 60 m

    An Oil Interface Meter that uses a 16mm probe for the accurate measurement of hydrocarbons as thin as 1.52 mm in wells as small as 19mm in diameter and for detecting tank leakage. As the Meter is lowered down a well and contacts the product layer, a solid tone and green light alarm is activated on the reel.
    From £96.98 Login for loyalty discount
    View More
  • PID MiniRAE Lite VOC Monitoring

    PID MiniRAE Lite

    A reliable handheld volatile organic compound (VOC) monitor with a range of 0 to 5,000 ppm to make it an ideal instrument for a wide range of applications. Often used in conjuction with an LEL for enhanced safety on site.
    From £105.72 Login for loyalty discount
    View More

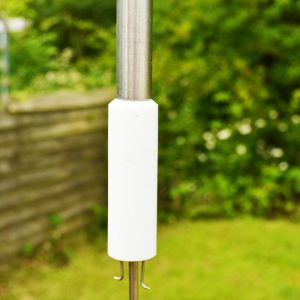

  • Liquid Layer Sampler
