LEL Personal Protection Monitor – Calibrated to Methane

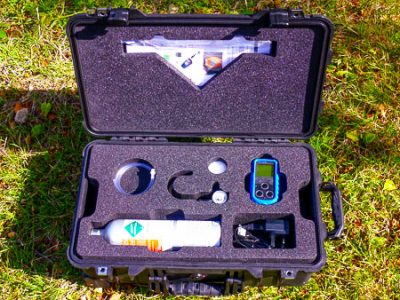

Part of the ‘Safe on Site’ package, a robust and accurate portable gas detector with audible and visual alarms which sound in the event of exposure to flammable gases, oxygen and a wide range of toxic gases onsite.

Categories: , Tag:

Weekly Rental Prices

First 4 weeks 5th & 6th weeks 7th week +
£104.19 £69.46 £52.09

Please Log In or Register to create an order.

You'll return here when you're done.

Login / Register

Product Details

Description

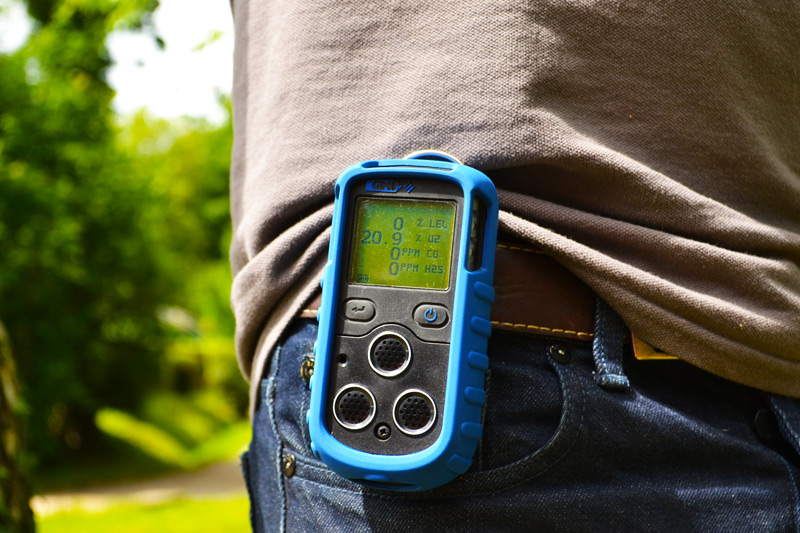

A robust and accurate portable gas detector with audible and visual alarms which sound in the event of exposure to flammable gases, oxygen and a wide range of toxic gases onsite.

Detecting and displaying up to four gases simultaneously this monitor can be configured to detect a combination of Methane (or other flammable gases), Oxygen, Carbon Monoxide, Hydrogen Sulphide.

Ideal for keeping you safe on petrol forecourts or landfill sites.

Benefits:

  • Simple one-button operation
  • No complex set up routines – out of the box performance
  • Internal Pump
  • Intrinsically safe
  • Can be calibrated to either Methane or Pentane depending on your required application
  • Audible, visual and vibrating alarms
  • Lightweight yet robust construction
  • Sensor integrity checking
  • Ease of maintenance
  • Fully backed by the Van Walt Technical team.
  • Size: 121 x 59 x 32mm (4.8" x 2.3" x 1.3")
  • Weight:
    • 230g (8oz) with pump
    • 215g (7.6oz) without pump
  • Temperature: -20oC to +50oC (-4oF to 122oF)
  • Humidity: 0 to 95% R.H non-condensing
  • Alarms: Highly visible flashing LED, piercing >90dB audible
  • Display: Green and red LCD backlight display
  • Datalogging:
    • Timed: 24 hours of timed logs at 1 log per minute
    • Session: Minimum of 180 logs
    • Calibration: Minimum of 8 calibration logs
    • Bump Logs: Minimum of 180 logs
  • Battery:
    • Lithium Ion rechargeable battery
    • Run Time: Up to 14 hrs (diffusion)
    • Charging Time < 4 hrs
  • Enclosure: High impact rubberized polycarbonate case
  • Drop Test: 3m (10ft)
  • IP Rating: IP67 (Dust-tight and waterproof to 1m)
  • Response Times:
    • (T90):LEL = 10 secs (IEC 60079-29-1)
    • O2 = 12 secs (BSEN 50 104)
    • CO < 20 secs
    • H2S < 20 secs
  • Approvals:
    • IEC Ex ia d IIC T4 Gb
    • ATEX Ex II 2 G Ex ia d IIC T4
    • CSA Class 1 Div 1 Groups A,B,C,D, T4
    • Class 1, Zone 1 EX ia d IIC T4
    • MED (0038/YY) - Module B & E
    • CE0518
